Materia :Forged Carbon steel
Test Load : Proof Load = SWL(WLL) × 3, Breaking Load = reference KS B 1034
Surface : Electric plated / Self color
The OthersMade in CHINA
| Product Code |
Size
(inch) |
SWL(WLL)
(kg) |

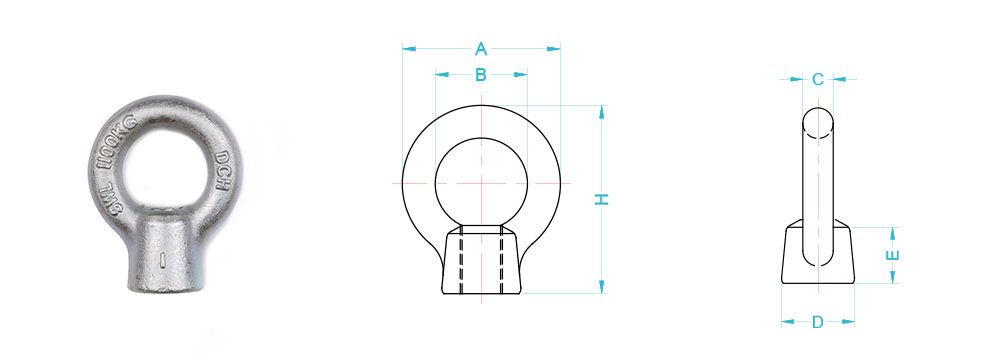

Dimension(mm) |
Weight
(kg) |
| A |
B |
C |
D |
E |
H |
| ENIN-001 |
5/16 |
80 |
32.6 |
20 |
6.3 |
16 |
12 |
39.3 |
0.03 |
| ENIN-002 |
3/8 |
130 |
41 |
25 |
8 |
20 |
15 |
48.5 |
0.07 |
| ENIN-003 |
1/2 |
250 |
50 |
30 |
10 |
25 |
19 |
61 |
0.1 |
| ENIN-004 |
5/8 |
440 |
60 |
35 |
12.5 |
30 |
23 |
72 |
0.2 |
| ENIN-005 |
3/4 |
580 |
72 |
40 |
16 |
35 |
28 |
86 |
0.4 |
| ENIN-006 |
7/8 |
880 |
82 |
46 |
18 |
40 |
33 |
100 |
0.6 |
| ENIN-007 |
1 |
1,100 |
90 |
50 |
20 |
45 |
38 |
111 |
0.8 |
