Eye Bolt

Eye Bolt Manual View

subject

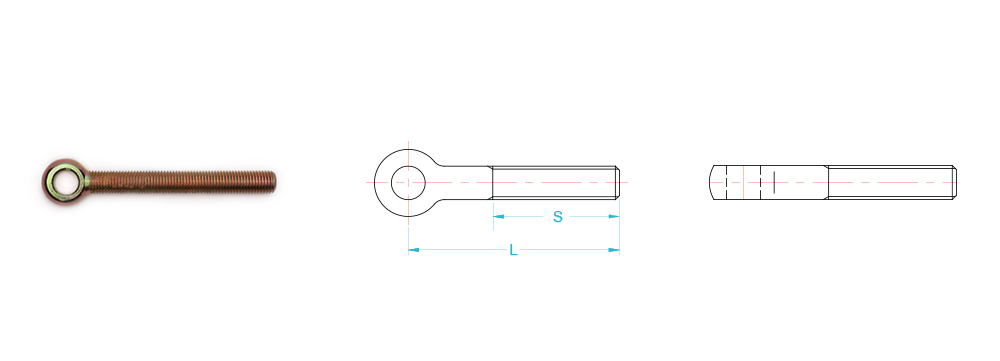

BTHC_HINGE BOLT

경첩볼트

경첩볼트

Material : Carbon steel
Surface : Self color / Electric plated
The Others
Made in KOREA or CHINA

Product Code	Size (mm)	Dimension(mm) L , S
Product Code	Size (mm)	40	45	50	55	60	65	70	75	80	85	90	100	110	120	130	140	150
BTHC-001	6	ㆍ	-	ㆍ	-	ㆍ	-	ㆍ	-	-	-	-	ㆍ	-	-	-	-	-
BTHC-002	8	25	ㆍ	35	-	45	-	55	-	55	-	65	75	85	95	100	110	120
BTHC-003	10	20	ㆍ	30	ㆍ	40	ㆍ	50	ㆍ	60	ㆍ	70	75	85	95	100	110	120
BTHC-004	12	-	-	30	ㆍ	40	ㆍ	50	ㆍ	55	ㆍ	65	75	85	95	100	110	120
BTHC-005	16	-	-	-	-	40	-	50	ㆍ	60	ㆍ	70	75	85	95	100	110	120
BTHC-006	20	-	-	-	-	-	-	ㆍ	-	55	-	65	75	85	90	90	100	110
BTHC-006	22	-	-	-	-	-	-	-	-	-	-	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ

Product Code	Size (inch)	Dimension(mm) L , S
Product Code	Size (inch)	BTHC-001	6
40	45			50	55	60	65	70	75	80
ㆍ	-			ㆍ	-	ㆍ	-	ㆍ	-	-
85	90			100	110	120	130	140	150
-	-			ㆍ	-	-	-	-	-
BTHC-002	8
		40	45	50	55	60	65	70	75	80
		25	ㆍ	35	-	45	-	55	-	55
		85	90	100	110	120	130	140	150
		-	65	75	85	95	100	110	120
BTHC-003	10
		40	45	50	55	60	65	70	75	80
		20	ㆍ	30	ㆍ	40	ㆍ	50	ㆍ	60
		85	90	100	110	120	130	140	150
		ㆍ	70	75	85	95	100	110	120
BTHC-004	12
		40	45	50	55	60	65	70	75	80
		-	-	30	ㆍ	40	ㆍ	50	ㆍ	55
		85	90	100	110	120	130	140	150
		ㆍ	65	75	85	95	100	110	120
BTHC-005	16
		40	45	50	55	60	65	70	75	80
		-	-	-	-	40	-	50	ㆍ	60
		85	90	100	110	120	130	140	150
		ㆍ	70	75	85	95	100	110	120
BTHC-006	20
		40	45	50	55	60	65	70	75	80
		-	-	-	-	-	-	ㆍ	-	55
		85	90	100	110	120	130	140	150
		-	65	75	85	90	90	100	110
BTHC-006	22
		40	45	50	55	60	65	70	75	80
		-	-	-	-	-	-	-	-	-
		85	90	100	110	120	130	140	150
		-	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ	ㆍ
