Material : Forged Carbon steel
Test Load : Proof Load = SWL(WLL) × 2, Breaking Load = SWL(WLL) × 6
Surface : Electric plated / Self color
Reference : ISO 3266 / DIN 580
| Product Code |
Size
(mm) |
SWL(WLL)
(kg) |

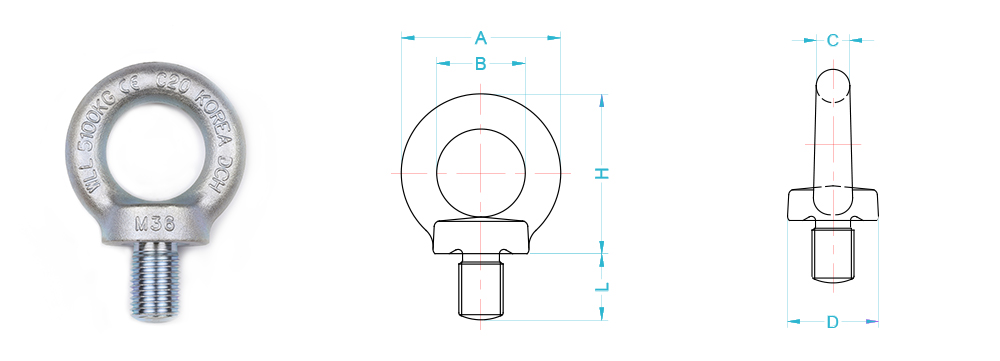

Dimension(mm) |
Weight
(kg) |
| A |
B |
C |
D |
H |
L |
| EBEM-001 |
24 |
1,800 |
90 |
50 |
20 |
50 |
90 |
36 |
0.7 |
| EBEM-002 |
30 |
3,200 | 108 |
60 |
24 |
65 |
109 |
45 |
1.7 |
| EBEM-003 |
36 |
4,600 |
126 |
70 |
28 |
75 |
128 |
54 |
2.7 |
| EBEM-004 |
42 |
6,300 |
144 |
80 |
32 |
85 |
147 |
63 |
4 |
| EBEM-005 |
48 |
8,600 |
166 |
90 |
38 |
100 |
168 |
68 |
6.4 |
| EBEM-006 |
56 |
11,500 |
184 |
100 |
42 |
110 |
187 |
78 |
8.8 |
| EBEM-007 |
64 |
16,000 |
206 |
110 |
48 |
120 |
208 |
90 |
12.4 |
PRODUCT
Eye Bolt
