Material : Forged Alloy steel
Test Load
Proof Load = SWL(WLL) × 3
Breaking Load = reference KS B 1033
Surface : Self color / Blacken
The Others
*M8 ~ M12 : Made in CHINA, M16 ~ M80 : Made in KOREA or CHINA
| Product Code |
Size
(mm) |
SWL(WLL)
(kg) |

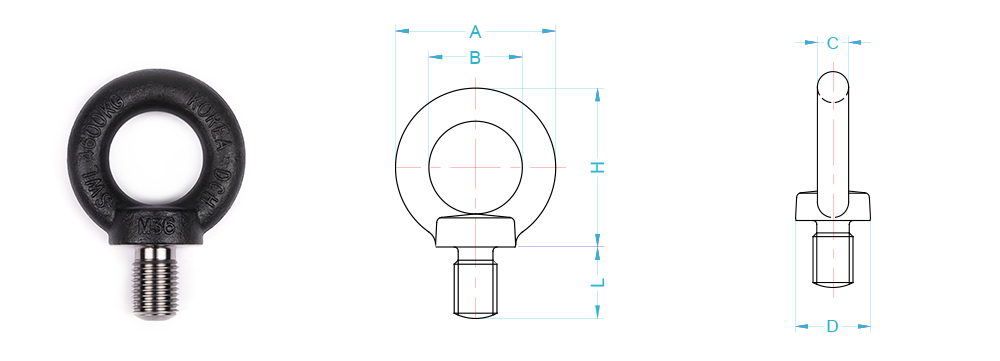

Dimension(mm) |
Weight
(kg) |
| A |
B |
C |
D |
H |
L |
| EBEA-001 |
8 |
160 |
32.6 |
20 |
6.3 |
16 |
33 |
15 |
0.03 |
| EBEA-002 |
10 |
300 |
41 |
25 |
8 |
20 |
42 |
18 |
0.07 |
| EBEA-003 |
12 |
440 |
48 |
29 |
9.5 |
24 |
50 |
22 |
0.12 |
| EBEA-004 |
16 |
900 |
60 |
35 |
12.5 |
30 |
60 |
27 |
0.2 |
| EBEA-005 |
20 |
1,260 |
72 |
40 |
16 |
35 |
71 |
30 |
0.4 |
| EBEA-006 |
24 |
1,900 |
90 |
50 |
20 |
45 |
90 |
38 |
0.8 |
| EBEA-007 |
30 |
3,000 |
110 |
60 |
25 |
60 |
110 |
45 |
1.6 |
| EBEA-008 |
36 |
4,600 |
133 |
70 |
31.5 |
70 |
131.5 |
55 |
2.8 |
| EBEA-009 |
42 |
6,800 |
151 |
80 |
35.5 |
80 |
150.5 |
65 |
4.3 |
| EBEA-010 |
48 |
9,000 |
170 |
90 |
40 |
90 |
170 |
70 |
5.9 |
| EBEA-011 |
56 |
13,000 |
210 |
110 |
50 |
110 |
210 |
90 |
11.1 |
| EBEA-012 |
64 |
18,000 |
210 |
110 |
50 |
110 |
210 |
90 |
11.7 |
| EBEA-013 |
80 |
30,000 |
266 |
140 |
63 |
130 |
263 |
105 |
23 |
