스테인리스아이볼트메트릭

Material : Cast / Forged Stainless Steel
The Others
M6 ~ M24 : Made in CHINA(Cast)
M30 ~ M80 : Made in KOREA(Forged)

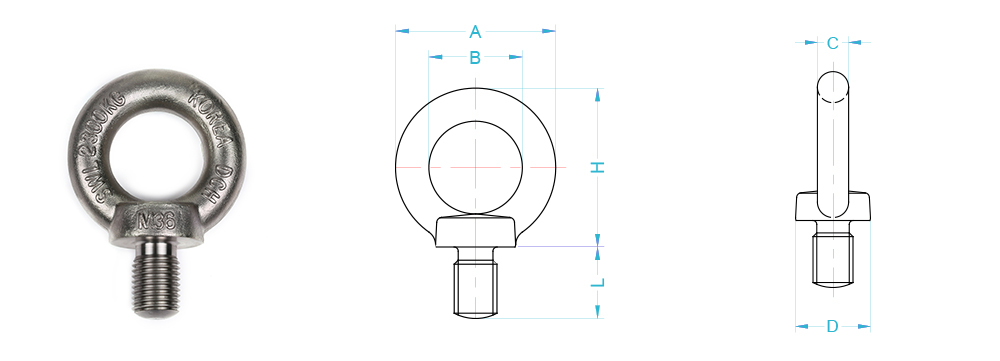

Product Code	Size (mm)	Dimension(mm)						Weight (kg)
Product Code	Size (mm)	A	B	C	D	H	L	Weight (kg)
EBSM-015	6	26.5	16	5.2	13.4	26.5	14	0.02
EBSM-001	8	32.6	20	6.3	16	33	15	0.03
EBSM-002	10	41	25	8	20	42	18	0.07
EBSM-003	12	48	29	9.5	24	50	22	0.12
EBSM-012	14	55	32	11.5	28	55	25	0.17
EBSM-004	16	60	35	12.5	30	60	27	0.2
EBSM-013	18	66	37	14.5	33	66	30	0.3
EBSM-005	20	72	40	16	35	71	30	0.4
EBSM-014	22	80	44	18	40	80	35	0.6
EBSM-006	24	90	50	20	45	90	38	0.8
EBSM-007	30	110	60	25	60	110	45	1.6
EBSM-008	36	133	70	31.5	70	131.5	55	2.8
EBSM-009	42	151	80	35.5	80	150.5	65	4.3
EBSM-010	48	170	90	40	90	170	70	5.9
EBSM-011	64	210	110	50	110	210	90	11.7
EBSM-012	80	226	140	63	130	263	105	23
