Material : Forged Carbon steel
Test Load
Proof Load = SWL(WLL) × 3
Breaking Load = reference KS B 1033
Reference : Electric plated / Self color
The Others
1/4 ~ 1" : Made in CHINA
1-1/4 ~ 2" : Made in KOREA
| Product Code |
Size
(inch) |
SWL(WLL)
(kg) |

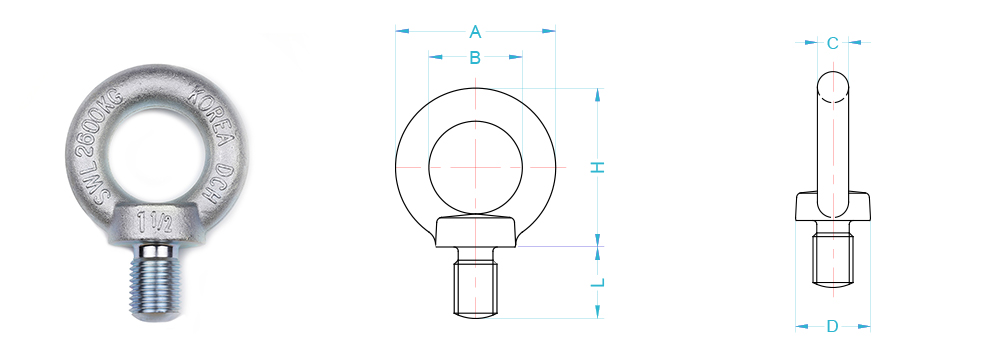

Dimension(mm) |
Weight
(kg) |
| A |
B |
C |
D |
H |
L |
| EBIN-012 |
1/4 |
40 |
32.6 |
20 |
6.3 |
16 |
33 |
15 |
0.03 |
| EBIN-001 |
5/16 |
80 |
32.6 |
20 |
6.3 |
16 |
33 |
15 |
0.03 |
| EBIN-002 |
3/8 |
130 |
41 |
25 |
8 |
20 |
42 |
18 |
0.06 |
| EBIN-003 |
1/2 |
250 |
48 |
29 |
9.5 |
24 |
50 |
22 |
0.12 |
| EBIN-004 |
5/8 |
440 |
60 |
35 |
12.5 |
30 |
60 |
27 |
0.2 |
| EBIN-005 |
3/4 |
580 |
72 |
40 |
16 |
35 |
71 |
30 |
0.4 |
| EBIN-006 |
7/8 |
880 |
80 |
44 |
18 |
40 |
80 |
35 |
0.6 |
| EBIN-007 |
1 |
1,100 |
90 |
50 |
20 |
45 |
90 |
38 |
0.8 |
| EBIN-008 |
1-1/4 |
1,700 |
110 |
60 |
25 |
60 |
110 |
45 |
1.5 |
| EBIN-009 |
1-1/2 |
2,600 |
133 |
70 |
31.5 |
70 |
131.5 |
55 |
2.8 |
| EBIN-010 |
1-3/4 |
4,000 |
151 |
80 |
35.5 |
80 |
150.5 |
65 |
4.3 |
| EBIN-011 |
2 |
5,100 |
170 |
90 |
40 |
90 |
170 |
70 |
6.2 |
PRODUCT
Eye Bolt
