아이너트메트릭

Material : Forged Carbon steel
Test Load
Proof Load = SWL(WLL) × 3
Breaking Load = reference KS B 1033
Surface : Electric plated / Self color
Reference : KS B 1034
The Others
M6 ~ M24, M48, M64 : Made in CHINA

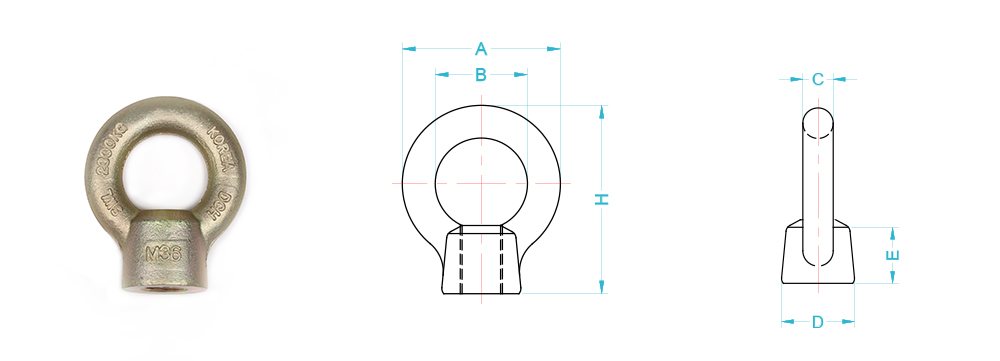

Product Code	Size (mm)	SWL(WLL) (kg)	Dimension(mm)						Weight (kg)
Product Code	Size (mm)	SWL(WLL) (kg)	A	B	C	D	E	H	Weight (kg)
ENMM-001	6	40	32.6	20	6.3	16	12	39.3	0.04
ENMM-002	8	80	32.6	20	6.3	16	12	39.3	0.04
ENMM-003	10	150	41	25	8	20	15	48.5	0.06
ENMM-004	12	220	50	30	10	25	19	61	0.1
ENMM-005	14	330	60	35	12.5	30	23	72	0.2
ENMM-006	16	450	60	35	12.5	30	23	72	0.2
ENMM-007	18	550	72	40	16	35	28	86	0.4
ENMM-008	20	630	72	40	16	35	28	86	0.4
ENMM-009	22	790	80	44	18	40	33	100	0.6
ENMM-010	24	950	90	50	20	45	38	111	0.8
ENMM-011	30	1,500	110	60	25	60	46	135	1.6
ENMM-012	36	2,300	133	70	31.5	70	55	161.5	3
ENMM-013	42	3,400	151	80	35.5	80	64	184.5	4.4
ENMM-014	48	4,500	170	90	40	90	73	208	6.1
ENMM-015	64	9,000	210	110	50	110	90	256	10.2
